Digital models are being used to not only help test the energy efficiency of experimental homes, but to also to ensure the models themselves are robust.

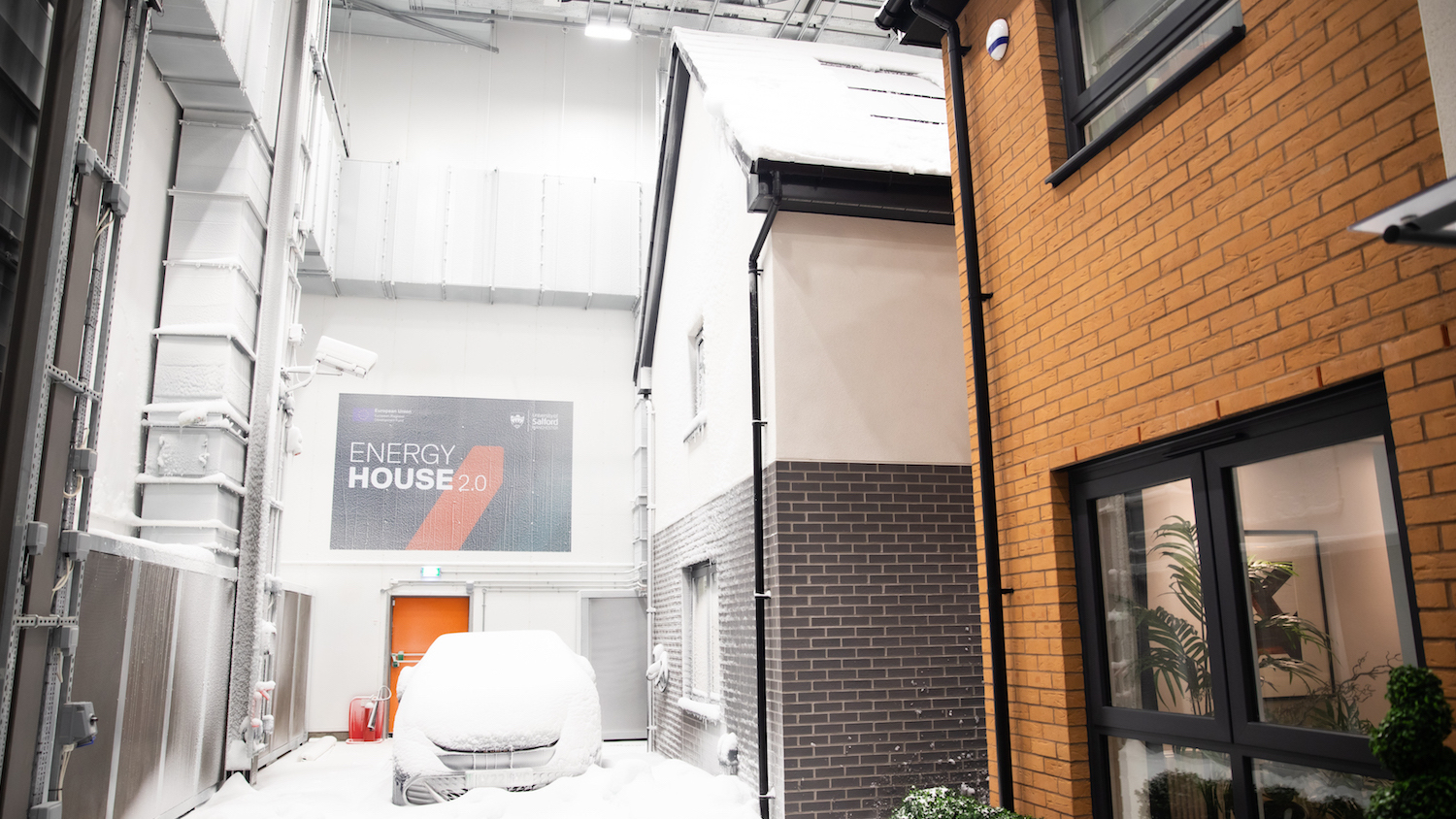

It involves the University of Salford’s Energy House 2.0 test facility: a 1,050 sq m lab that tests the thermal efficiency (from -20 deg C to 40 deg C) of the full-size homes contained within it.
This is not a paywall. Registration allows us to enhance your experience across Construction Management and ensure we deliver you quality editorial content.
Registering also means you can manage your own CPDs, comments, newsletter sign-ups and privacy settings.
Barratt Developments (working in partnership with Saint-Gobain) and Bellway Homes built the homes, while RSK Group subsidiary Zero Energy Design (ZED) developed the digital twins for them.
ZED building physics consultant Alex Tilley said: “The University of Salford research lab’s HVAC allows conditions to go from -20 deg C to 40 deg C and the simulation of wind, rain, snow and solar radiance. It’s a true test of the efficiency of the materials and systems used in existing housing stock and those used in new builds and retrofitting. In these controlled conditions, we have a unique opportunity to test these houses.”
The homes have been subjected to fabric performance tests and an assessment of how well they retain heat to understand their true heat transfer coefficient.
The next phase of the research will assess the performance of a variety of low-carbon heating systems (based around air source heat pumps and electric infrared), comparing their performance in terms of energy efficiency and thermal comfort.
Simultaneous testing
The digital twins of the test houses enable simultaneous testing of the homes in a virtual environment while the real-life testing occurs. The digital versions have the same geometry, material properties and heating, hot water, lighting and ventilation systems.
Tilley said: “The ZED team has been conducting virtual tests of both homes alongside these lab-based physical tests. The ambition is to align the real data with the digitally produced virtual data to validate future digital modelling. So far, the calculations made through the digital twins have been within a small tolerance of the true results, demonstrating the accuracy of these kinds of tests.”
Any differences in data from the real and virtual environments will inform improvements to future modelling.
